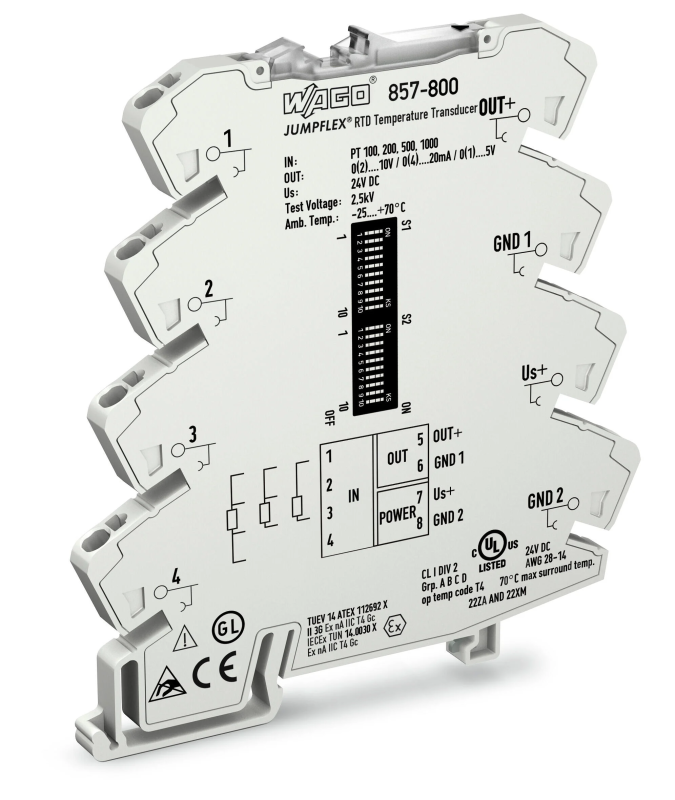

Temperature signal conditioner for RTD sensors 857-800

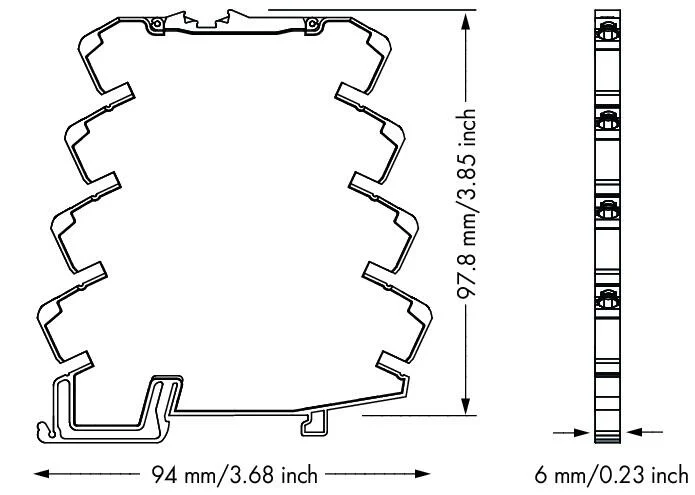

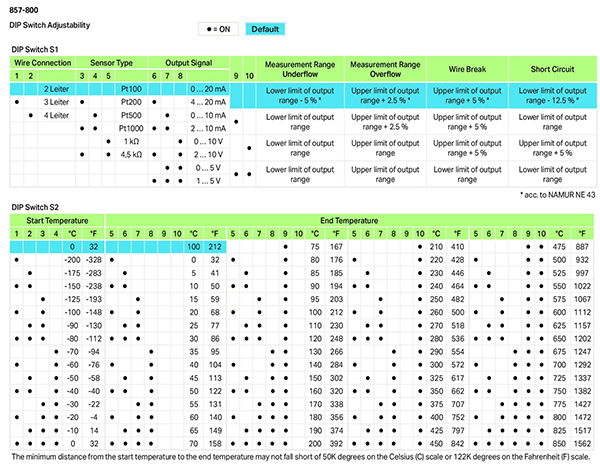

Temperature signal conditioner for RTD sensors; Current and voltage output signal; Configuration via DIP switch; Supply voltage: 24 VDC; 6 mm module width; light gray.

Features:

For Pt100, Pt200, Pt500 and Pt1000 sensors, as well as resistors up to 4.5 kOhm

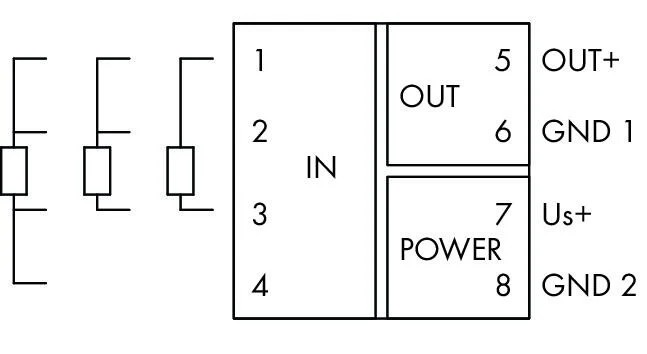

2-, 3- and 4-wire connection technology

Calibrated measurement range switching

Detects a sensor wire break/short circuit

Detects measurement range underflow/overflow

Clipping capability for analog signal limitation to output end values

3-way electrical isolation with 2.5 kV test voltage
