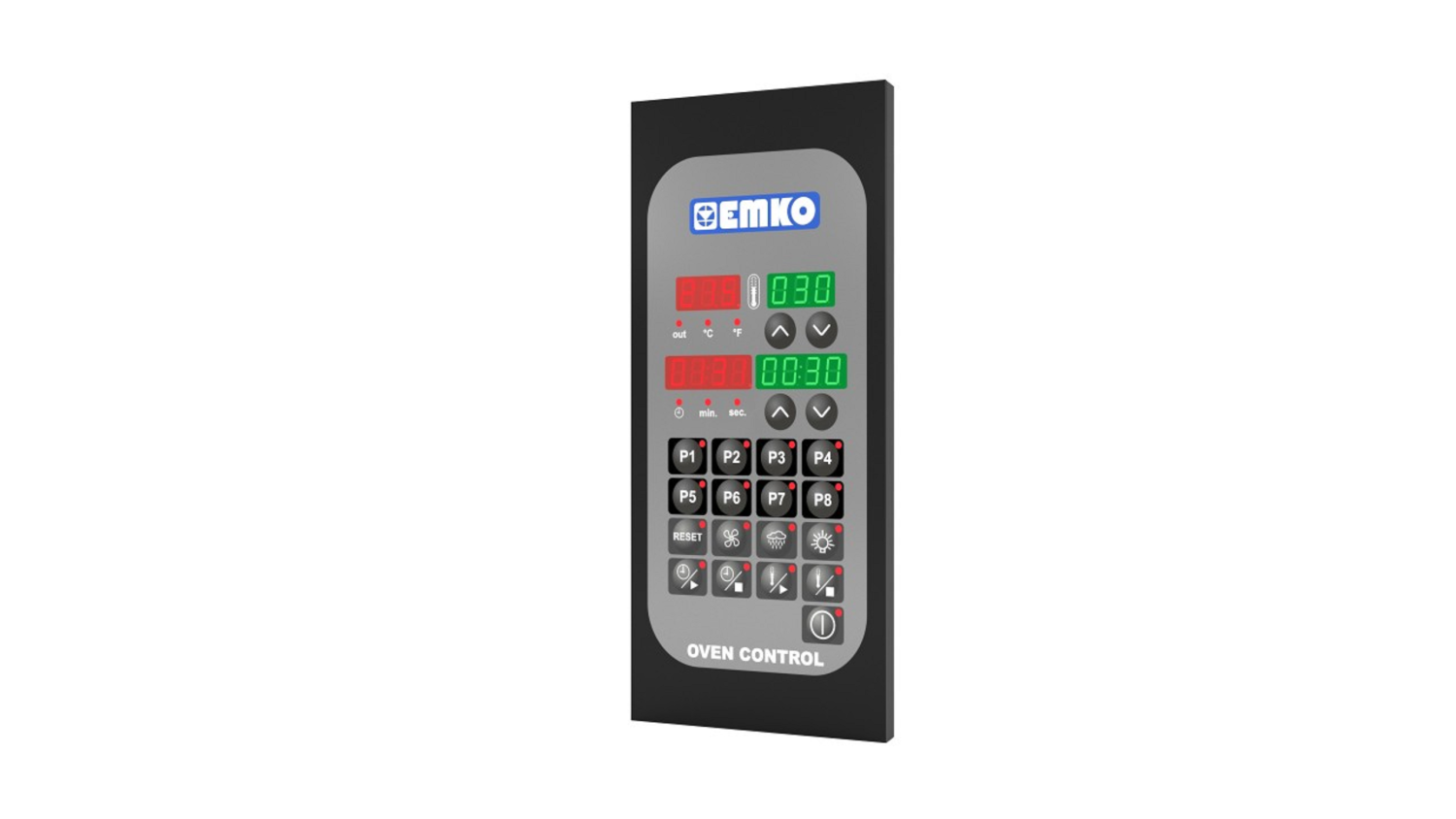

Single Zone Oven Controller - OvenControl.Single.2.23.0.0/00.00/0.0.0.0

8 buttons to making different programs / 2 isolated thermocupl input J or K (It must be determined in order) / Auto-start feature with real time / ON / OFF temperature control for 2 areas / Limitation of set value / Adjustable temperature offset / Selection of operation with hysteresis / 4 displays which has 3 digits and 2 diplays which has / 4 digits (For clock) / Relay outputs to control 2 Heaters(no/nc) / 4 Fans, Brulor, Steam,Lamp and Time-Out / 1 door status input and 1 brulor failure input / For failure and set status internal buzzer / Password protection for programming mode.

Supply Voltage: 24Vac/dc (-%15, +%10) 50/60Hz

Input Type: J, Fe-CuNi, 0...350 °C

Output-1: None
