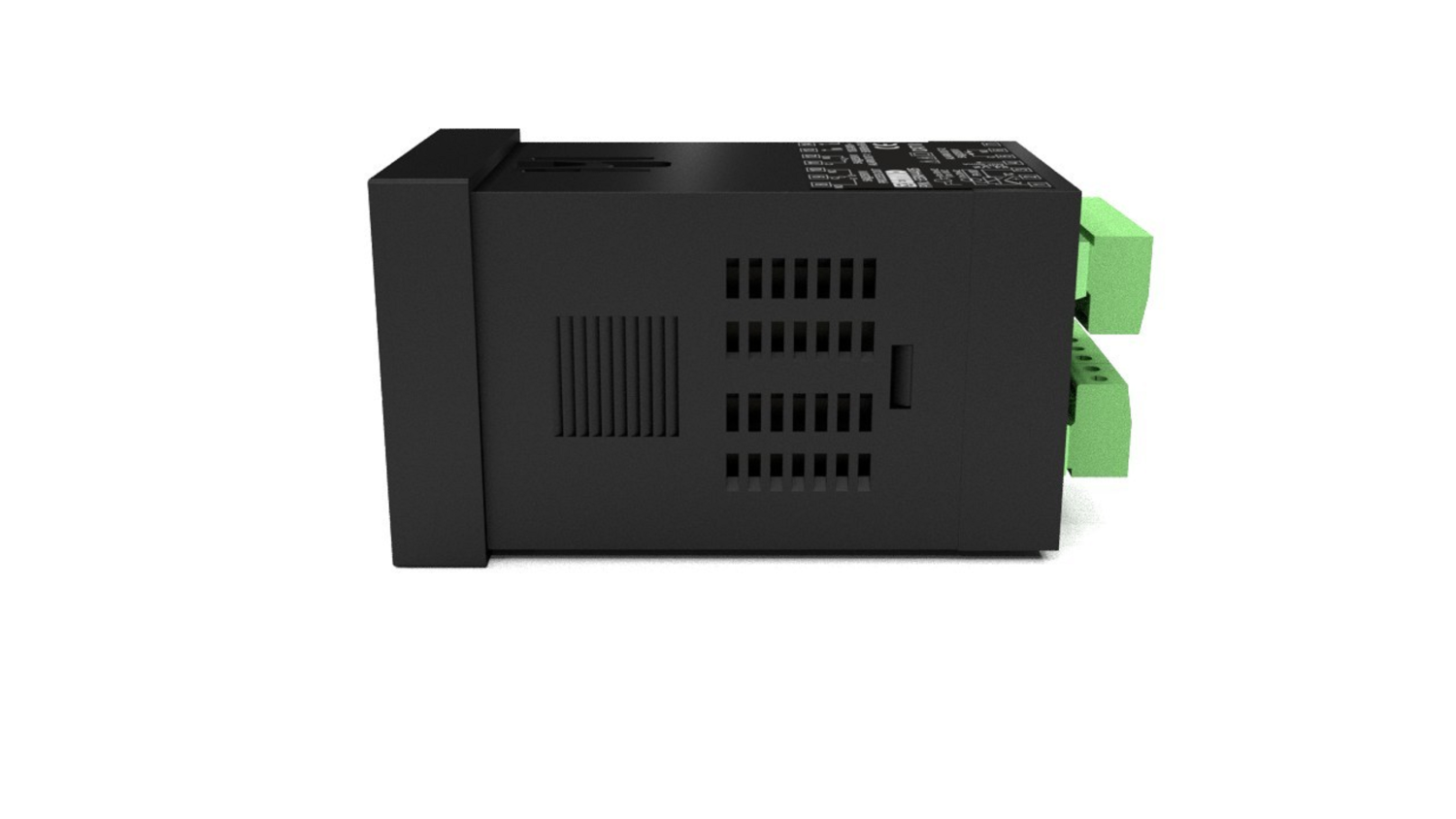

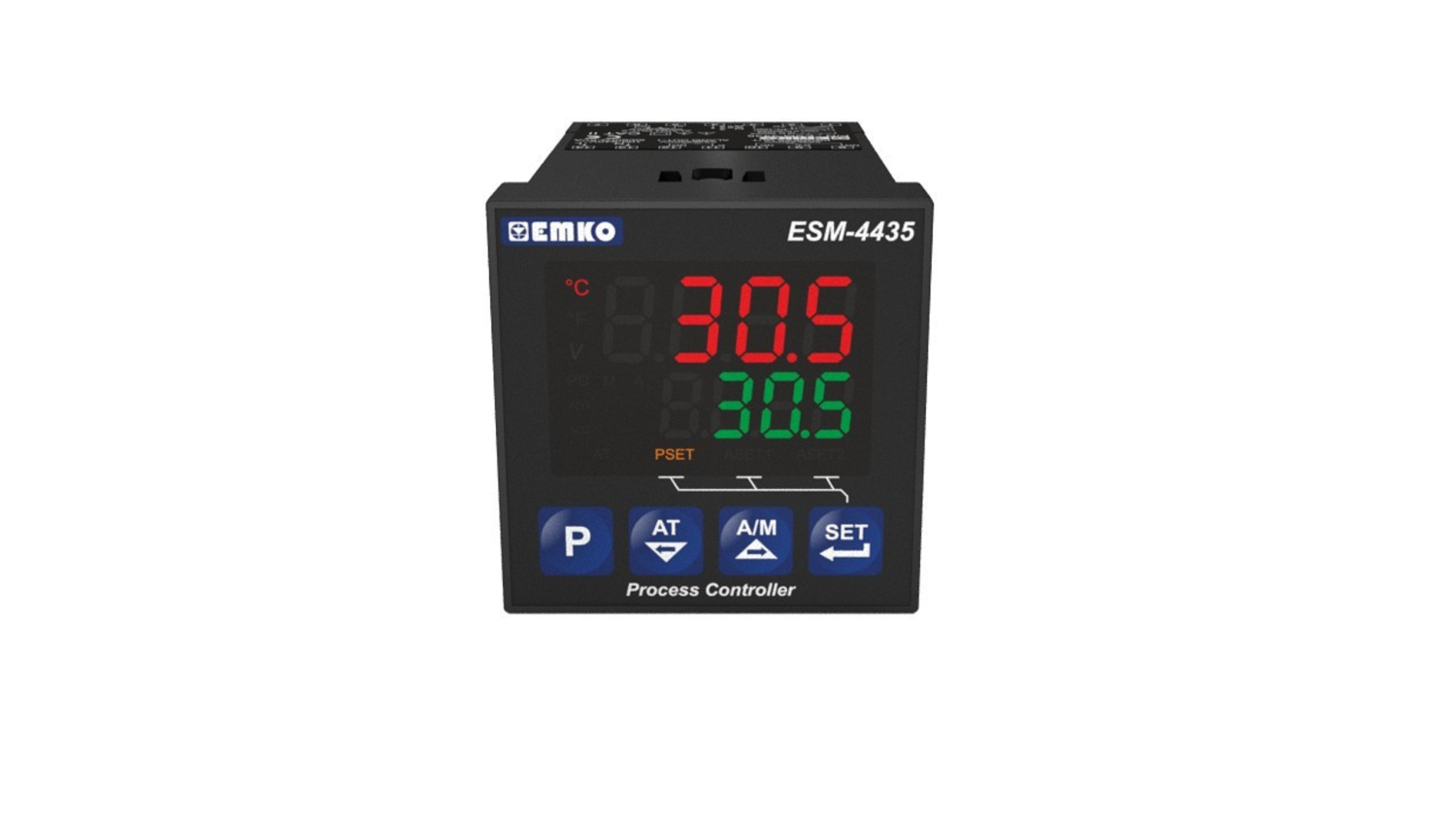

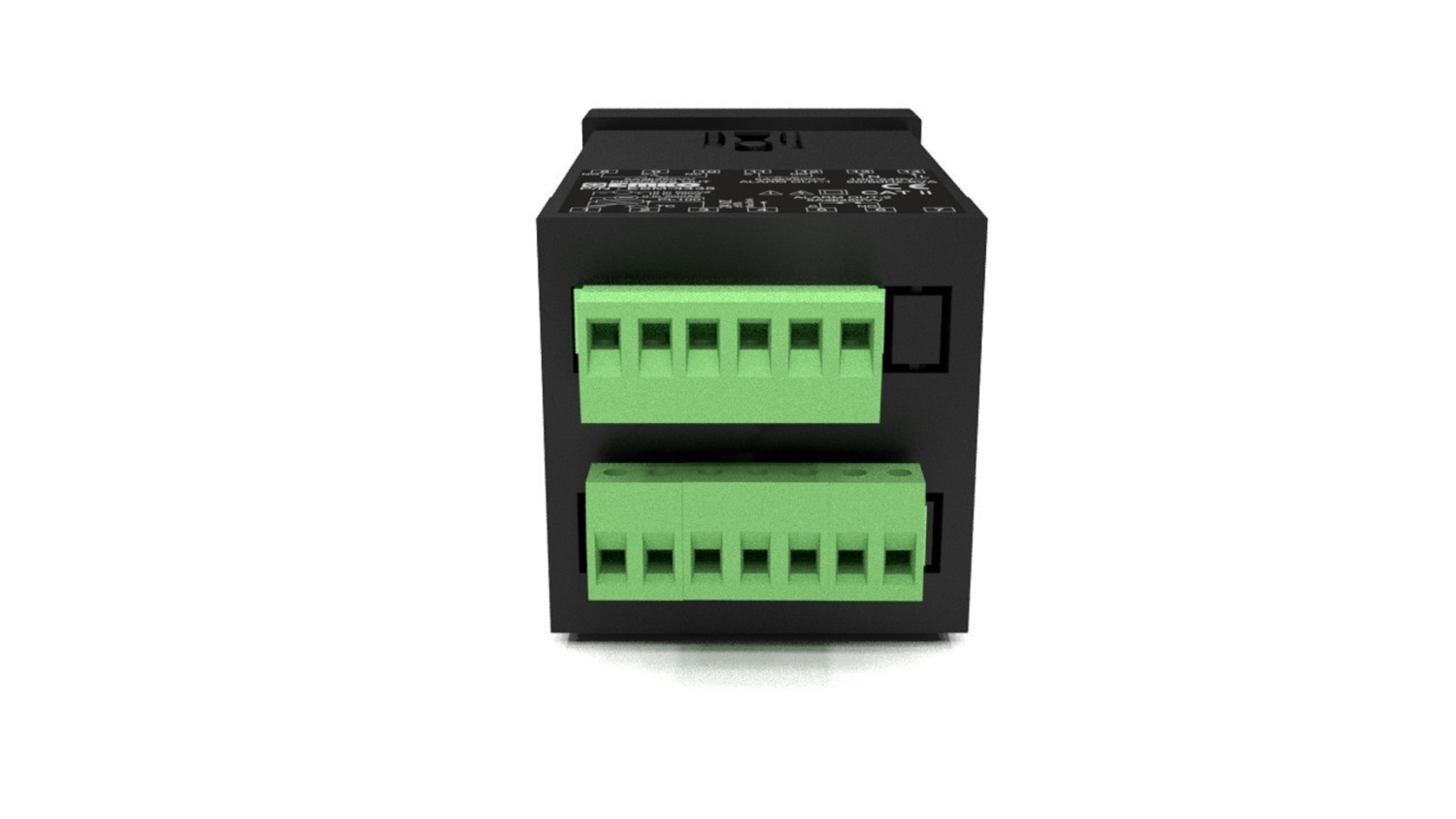

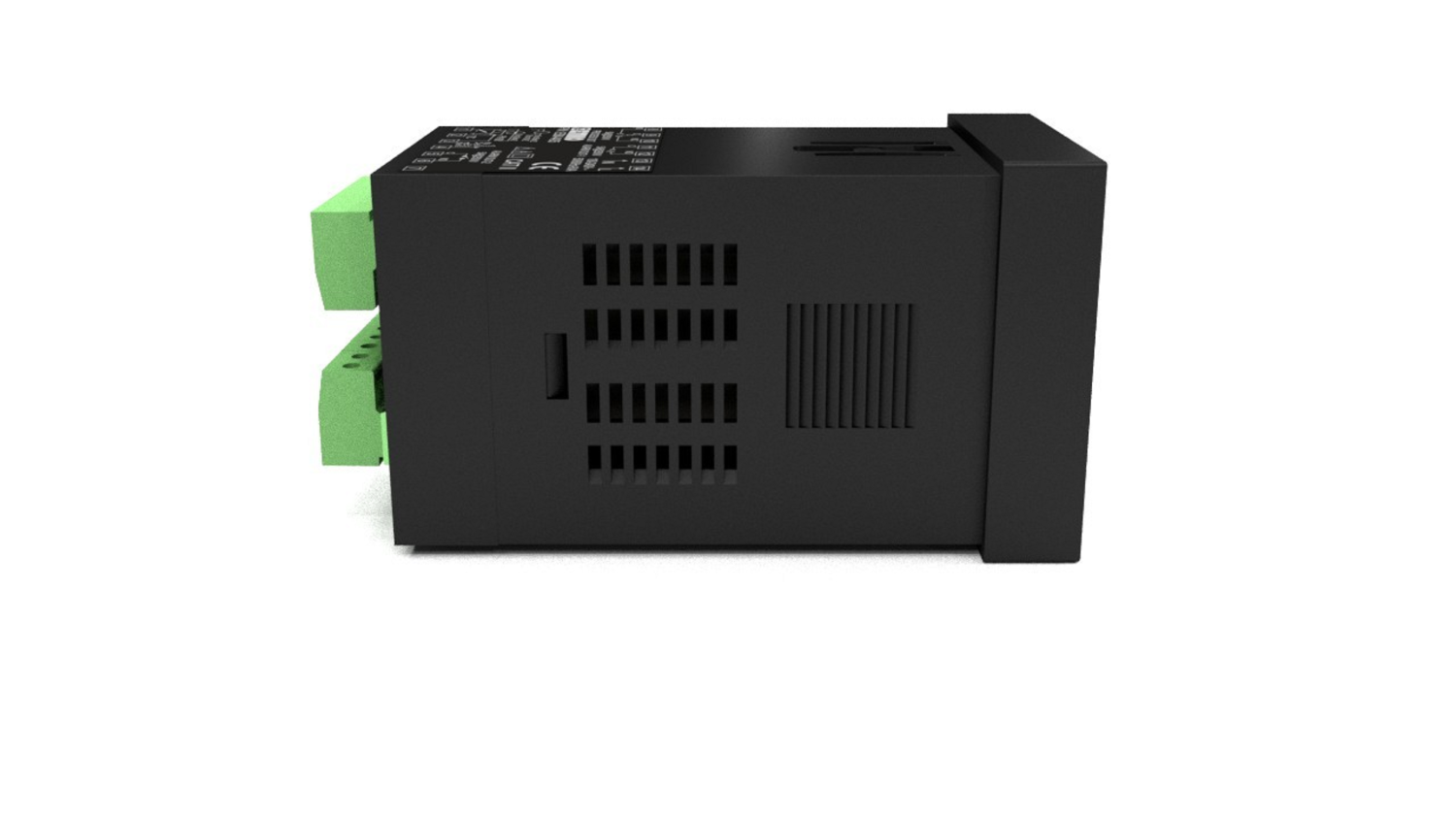

Universal Input, Dual Set PID Process Controller - ESM-4435.1.20.0.1/01.01/0.0.0.0

Universal process input (TC, RTD, mVdc, Vdc, mAdc) / Dual or multi point calibration for dc Voltage/Current input / Bumpless transfer / Auto-tune ve Self-tune PID /4 Digits process (PV) and 4 Digits set (SV) display / Configurable ON/OFF, P, PI, PD, and PID control forms / Manual/Automatic mode selection for control outputs / Programmable heating, cooling and alarm functions for control outputs.

Supply Voltage: 100...240Vac 50/60Hz

Input Type: Configurable Universal process input (TC, RTD, V, mA)

Output-1: Relay Output

Output-2: Relay Output

 Output-3: Relay Output
