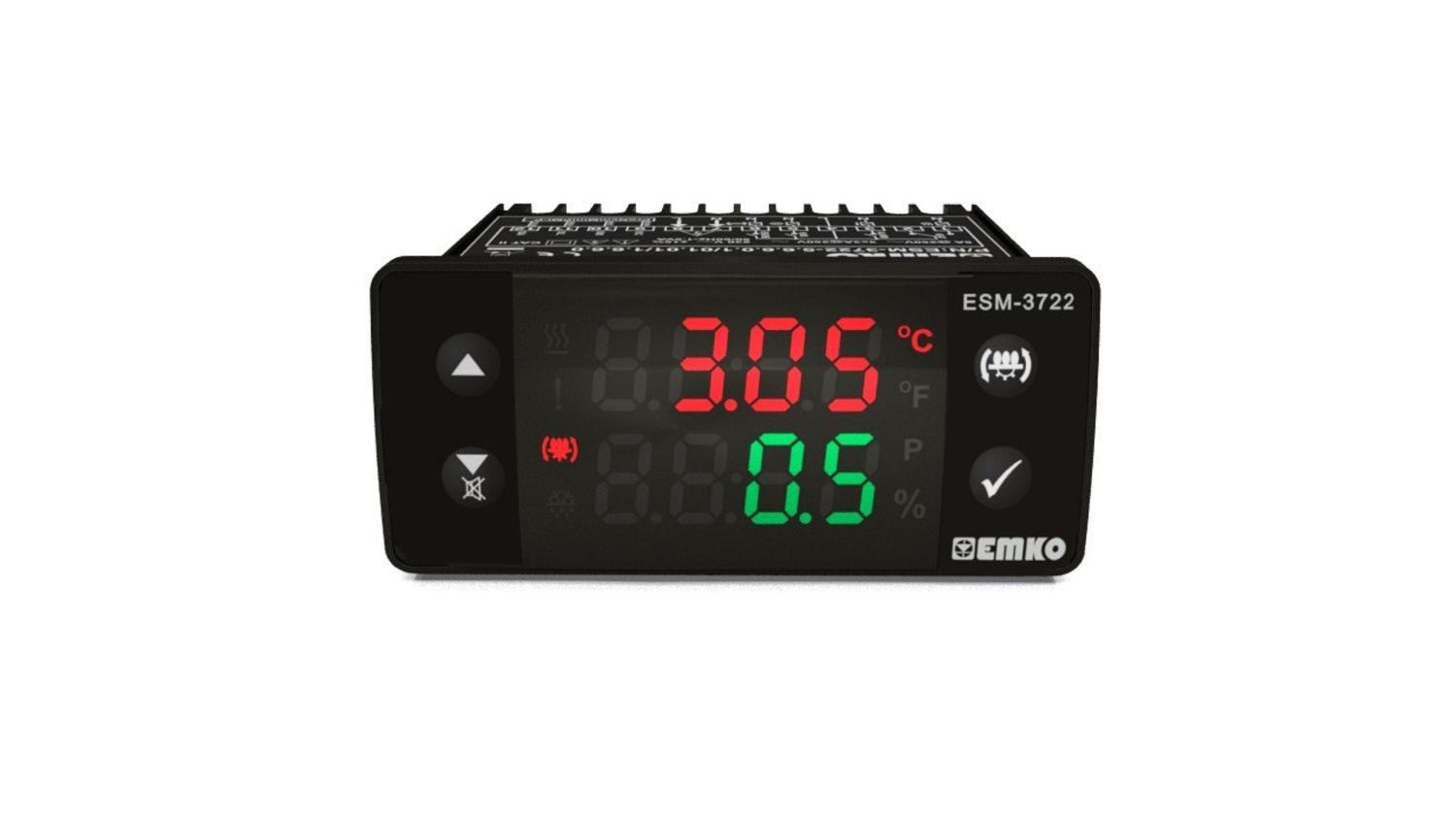

Digital ON/OFF and PID Hatcher Controller - ESM-3722.1.1.4.0.1/01.01/1.0.0.0

Temperature and Humidity (NTC, PTC, PT-100 or ProNem Mini PMI-D) / Humidity Sensor Input (0/2..10V, 0/4..20mA or ProNem Mini PMI-D) / Auto-Tune PID / Egg Tray manuel operation from front panel / 4 Digits Temperature and 4 Digits Humidity Display / Pronem PMI-P Temperature Sensor Input / Pronem Mini PMI-P Humidity Sensor Input / 4 Output for Temperature Control Output, Egg Tray Turning Output / Humidity Control Output, Alarm Control Output / PID or ON/OFF Selectable Temperature Control / Temperature and Humidity Set Value Boundaries.

Supply Voltage: 100...240Vac 50/60Hz

Heating Input Type: Pt-100, 0.0...100.0°C

Humidity Control Input: 0/2...10Vdc Voltage Input

Heating Control Output: Relay Output (Max. 5A@250Vac. for resistive load)

Humidity Control Output: Relay Output (Max. 3A@250Vac. for resistive load)

Egg Tray Rotator Control Output: Relay Output (Max. 3A@250Vac. for resistive load)

Alarm Output: Relay Output (Max. 3A@250Vac. for resistive load)

PTC and NTC Humidity & Temperator Sensor Selection: Only controller in the box
