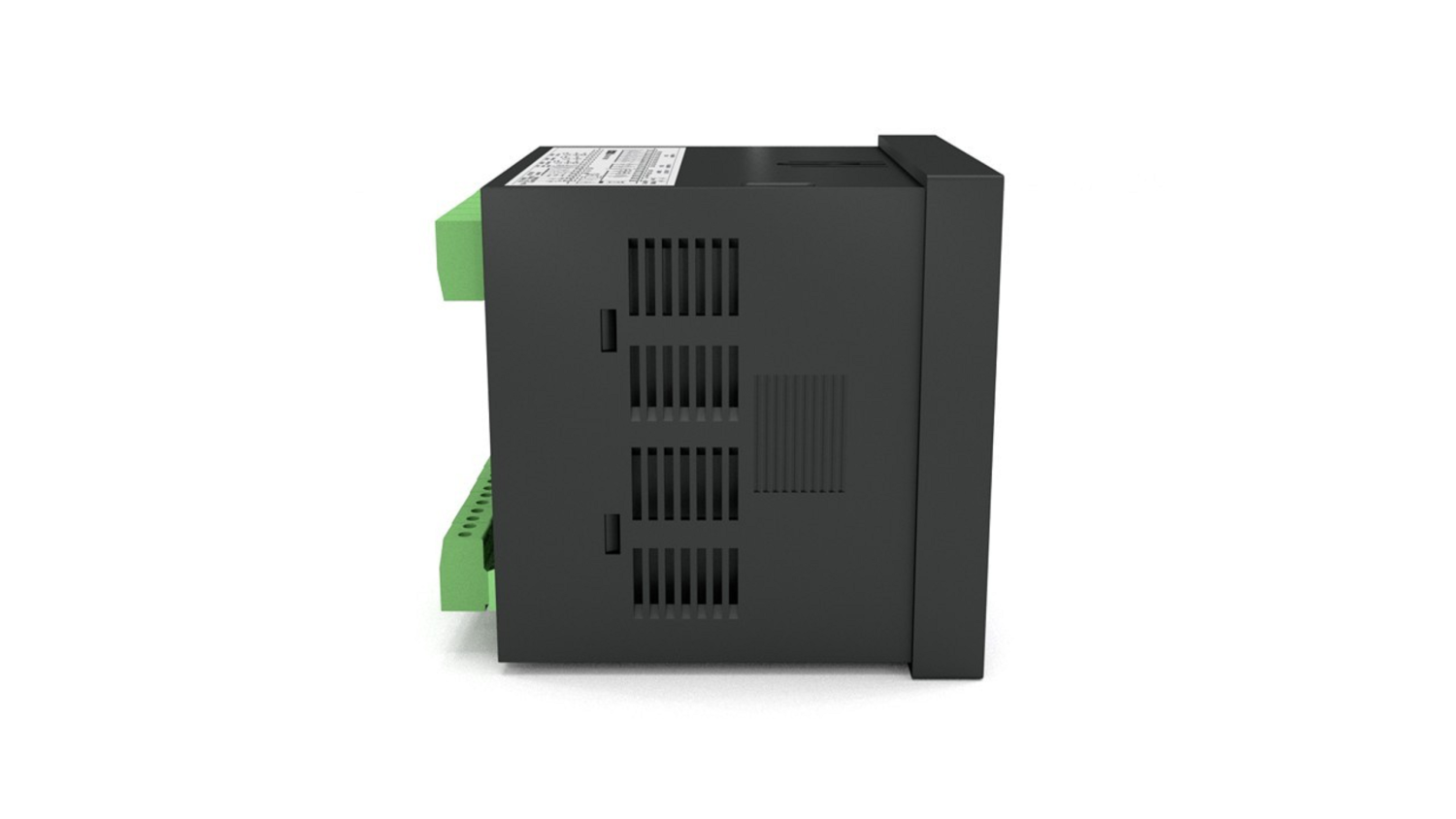

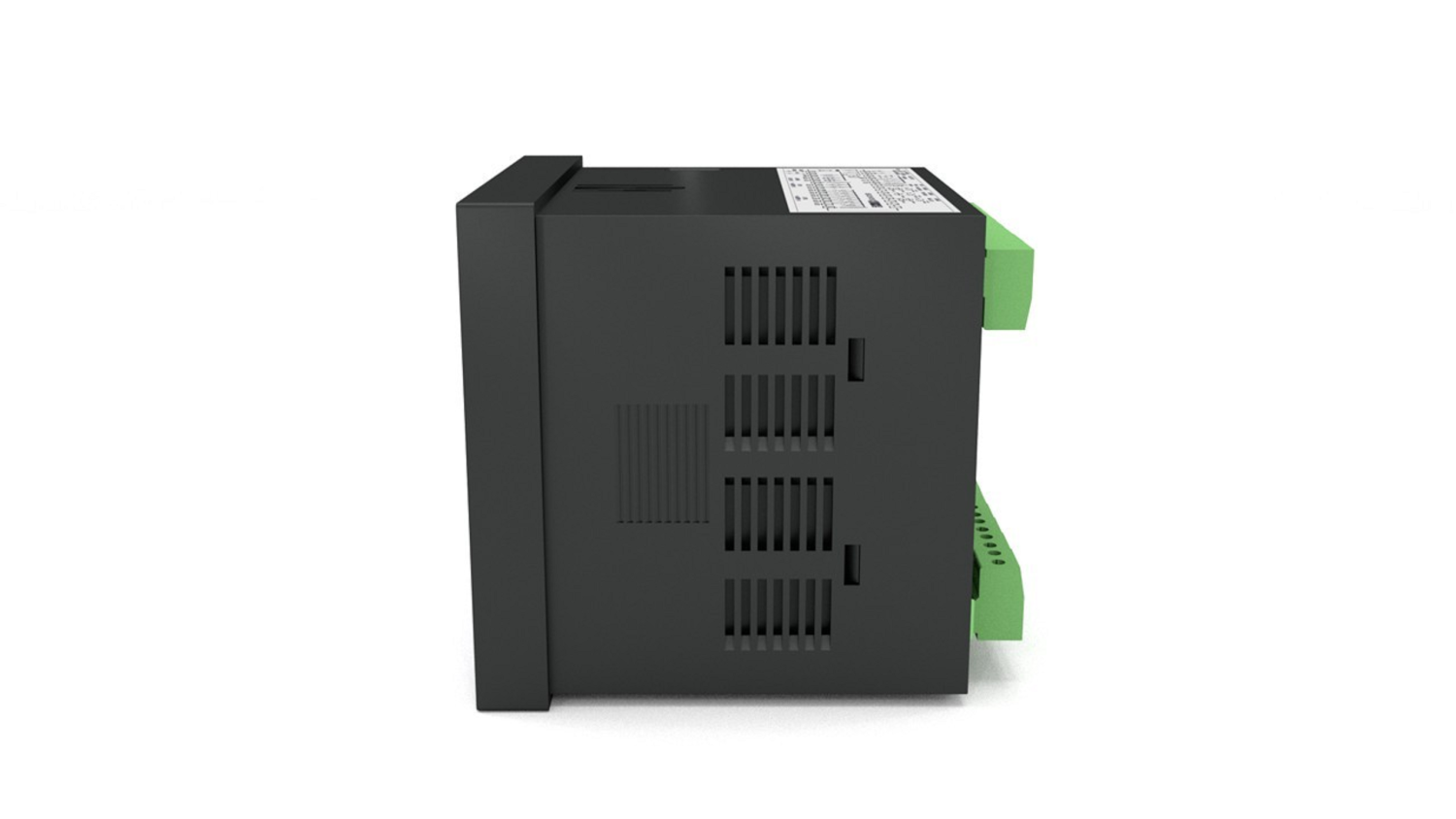

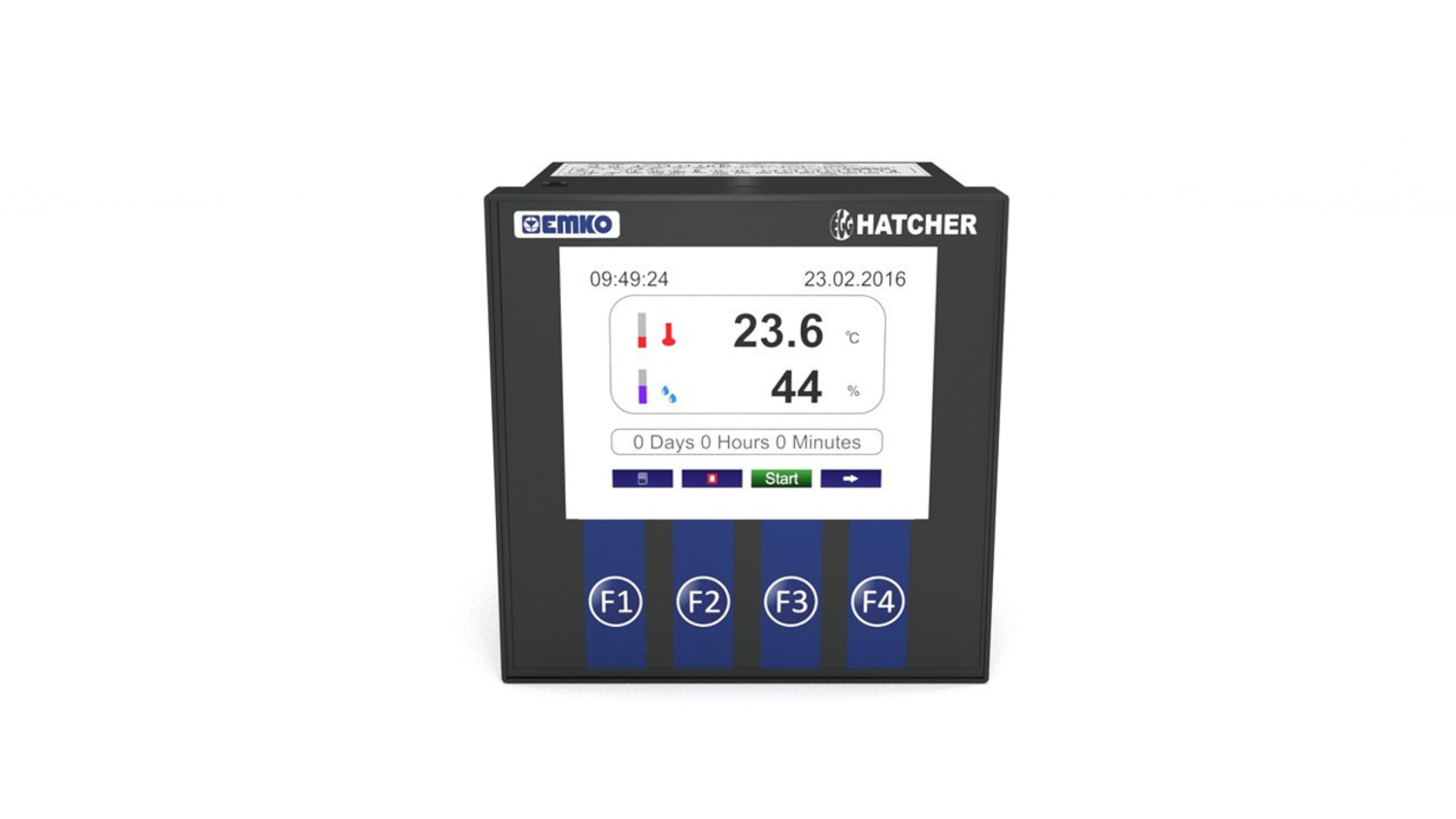

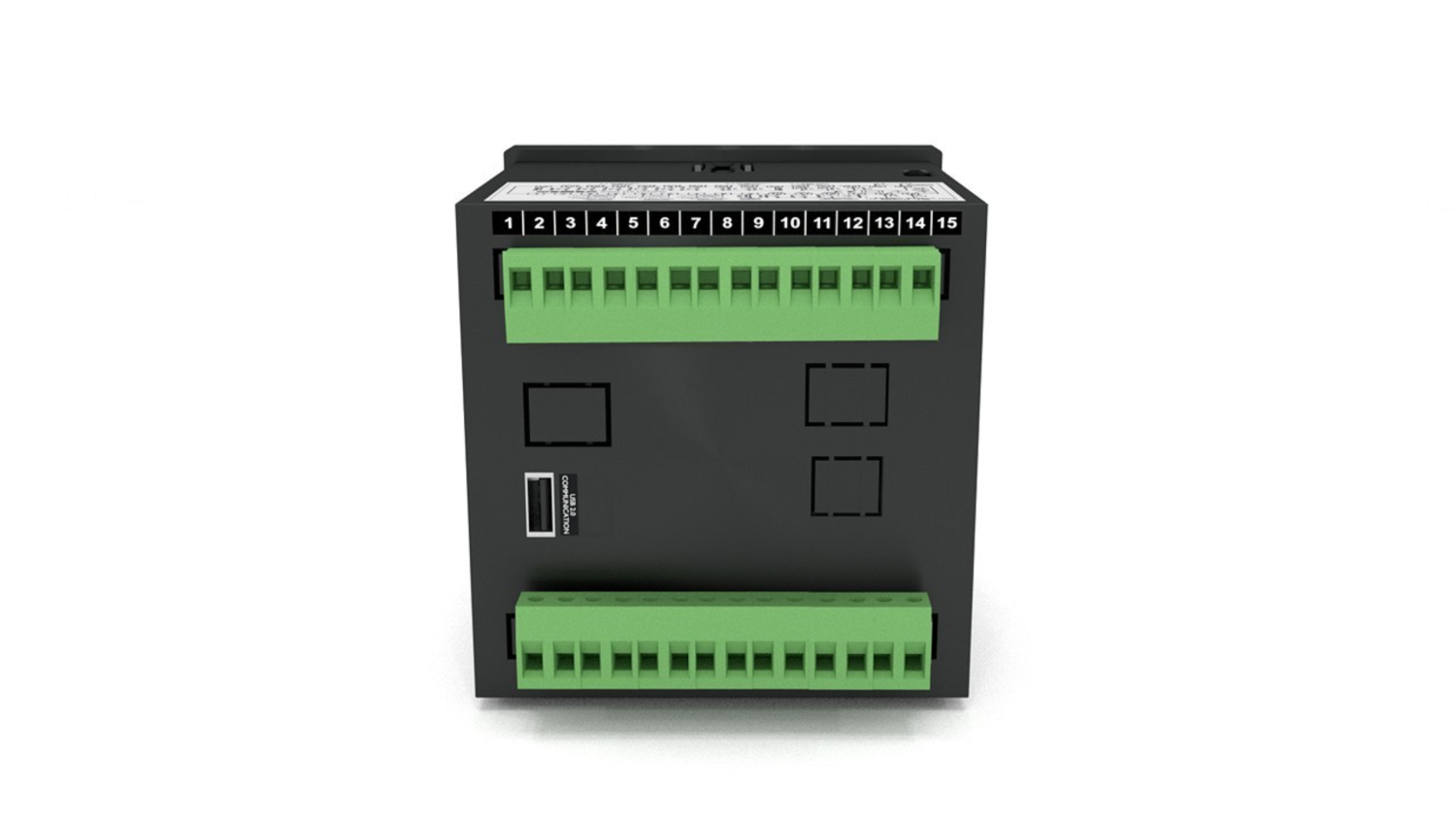

TFT LCD Display Incubator Controller - Egg Hatcher.1.20.1.000.0/0.0.0.0

320 x 240 Pixel TFT LCD / Can Start the Incubation Period Minus Days / (RTC) Real Time Time Operation On the Main Screen / (Day, Hour, Minute) Display / Heating PID or ON/OFF / Cooling ON / OFF Control / Analogue input (mA, mV, V, PT-100, Pronem-Mini) (Must be determined in order) /Humidity Control / Shutter Control / Tray Rotation Control / Alarm Parameters / Real Time Clock / Event Logs.

Supply Voltage: 100...240Vac 50/60Hz

Input Type: 2 x 0...20mA + Pt100

Outputs: 8x Relay + 2x SSR + 1x Analogue (0…20mA)

Communication Type: There is no communication feature.

PTC and Humidity & Temperator Sensor Selection: There is no sensor in the device box.
