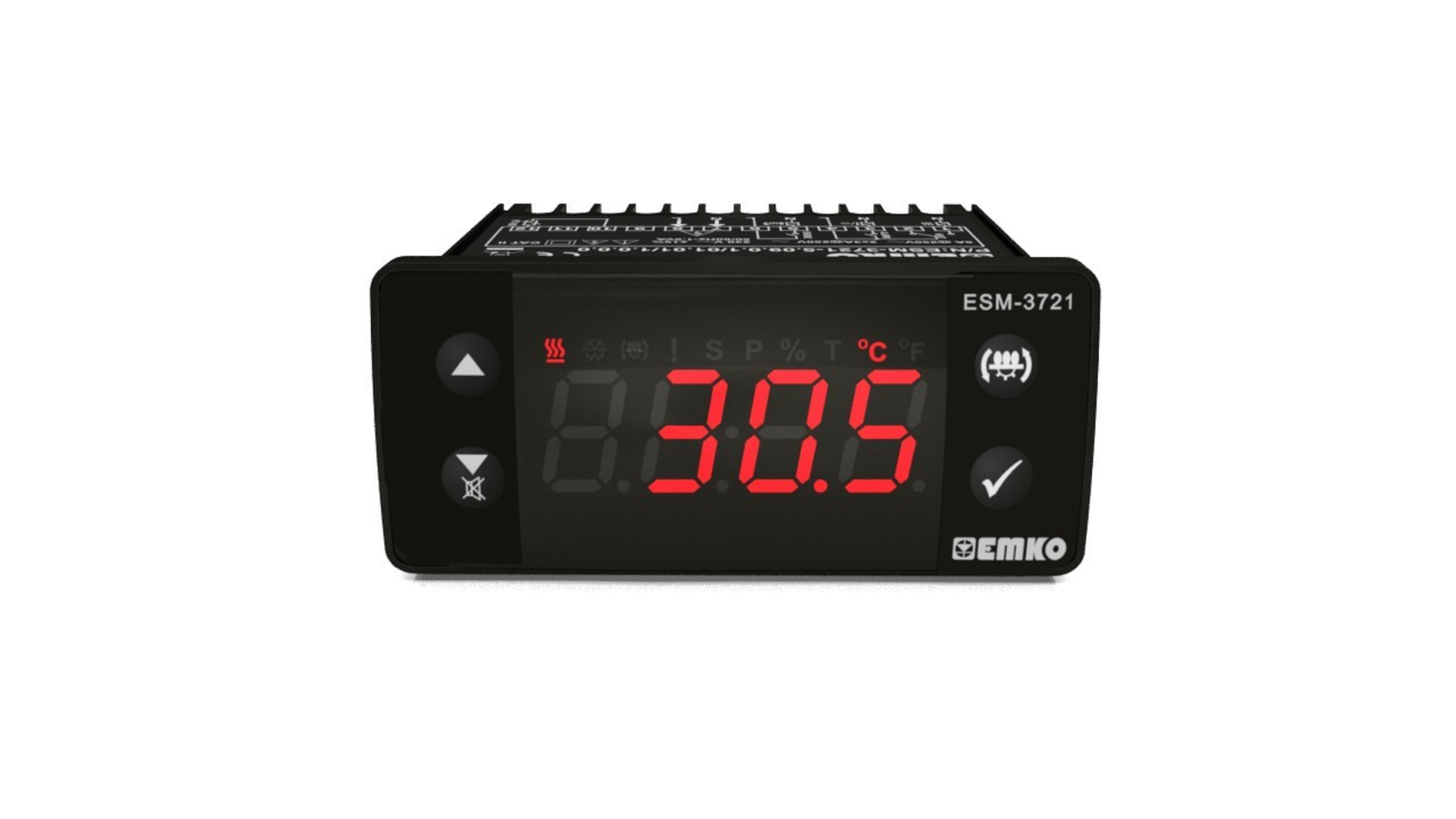

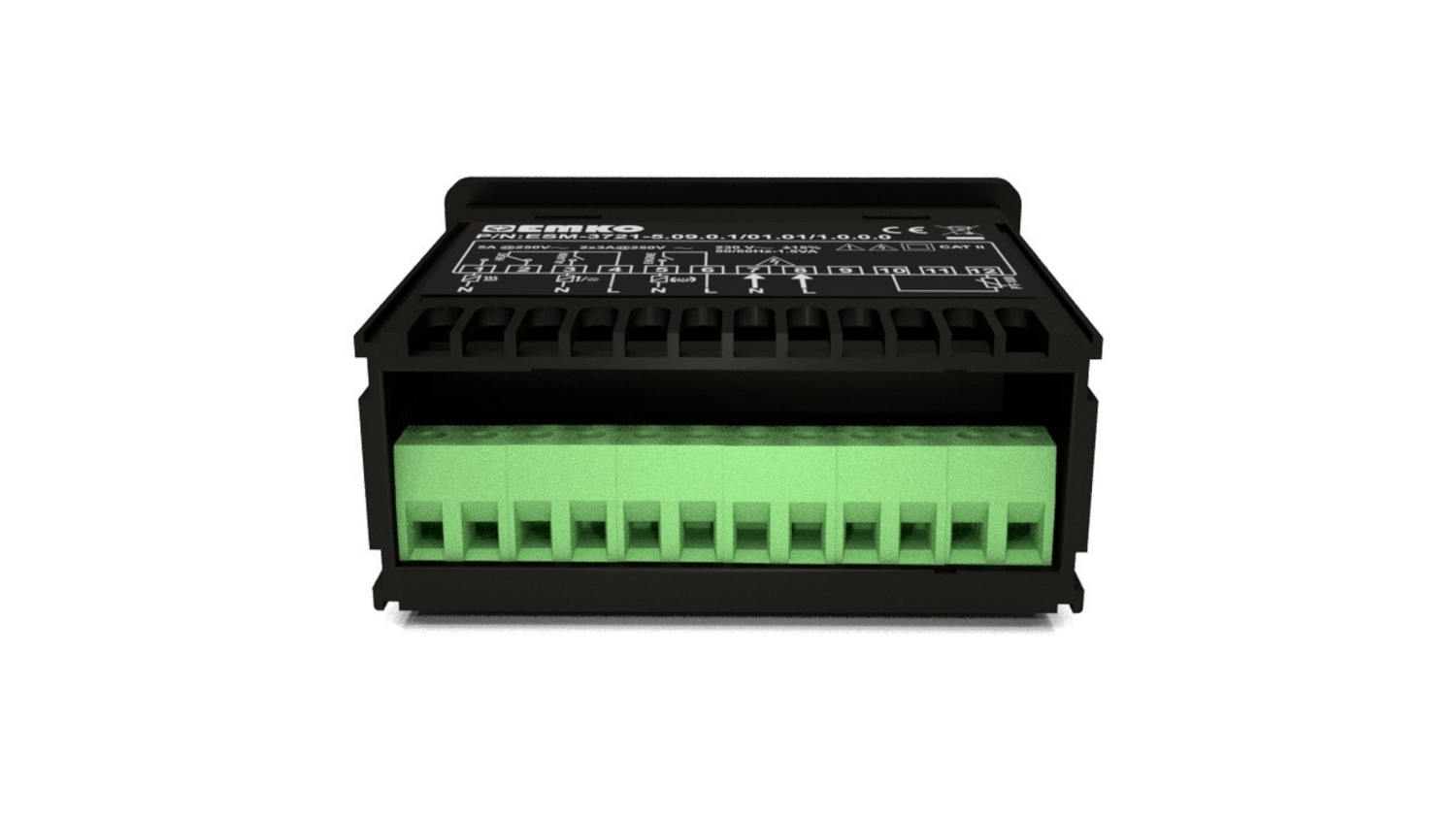

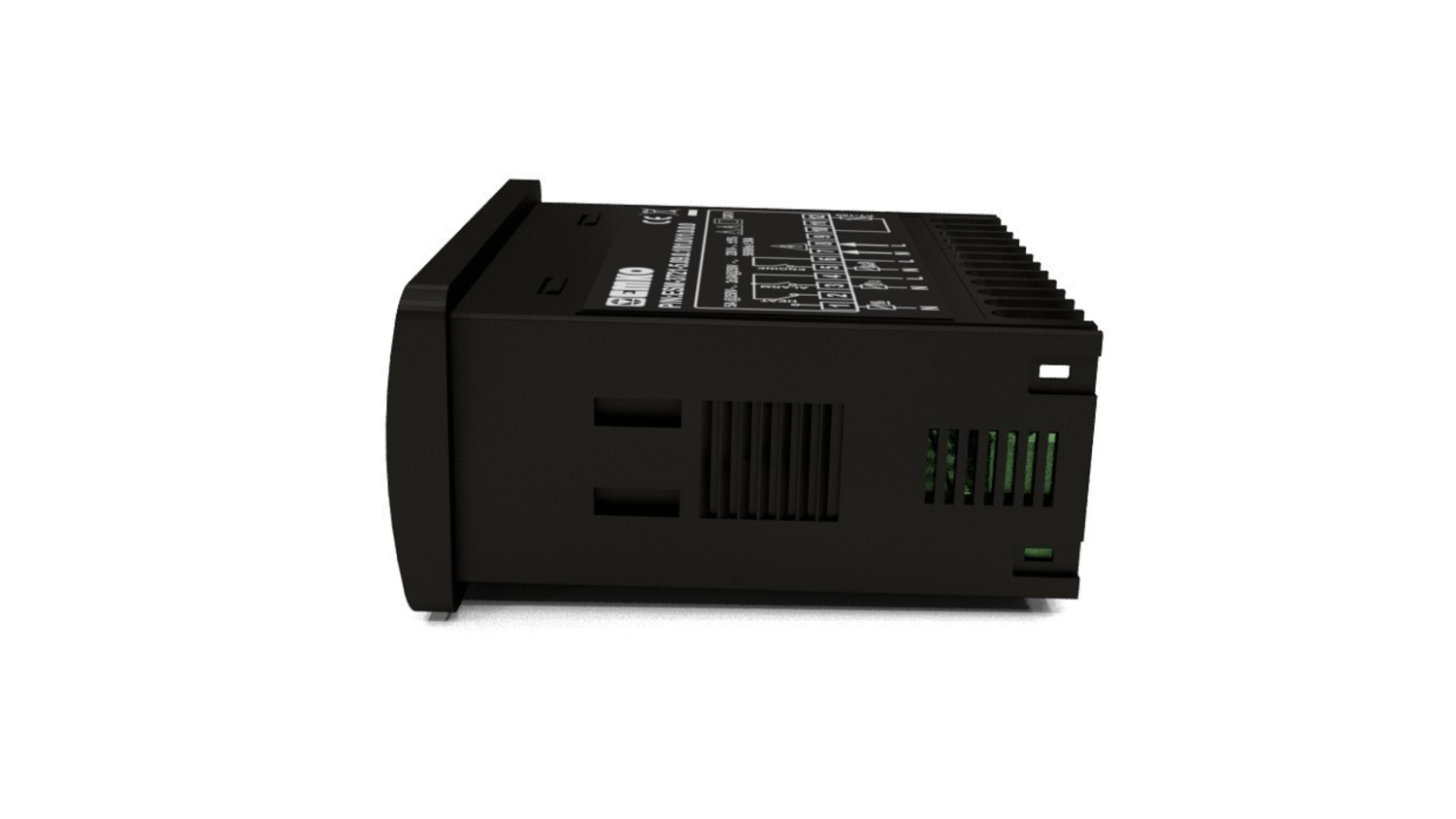

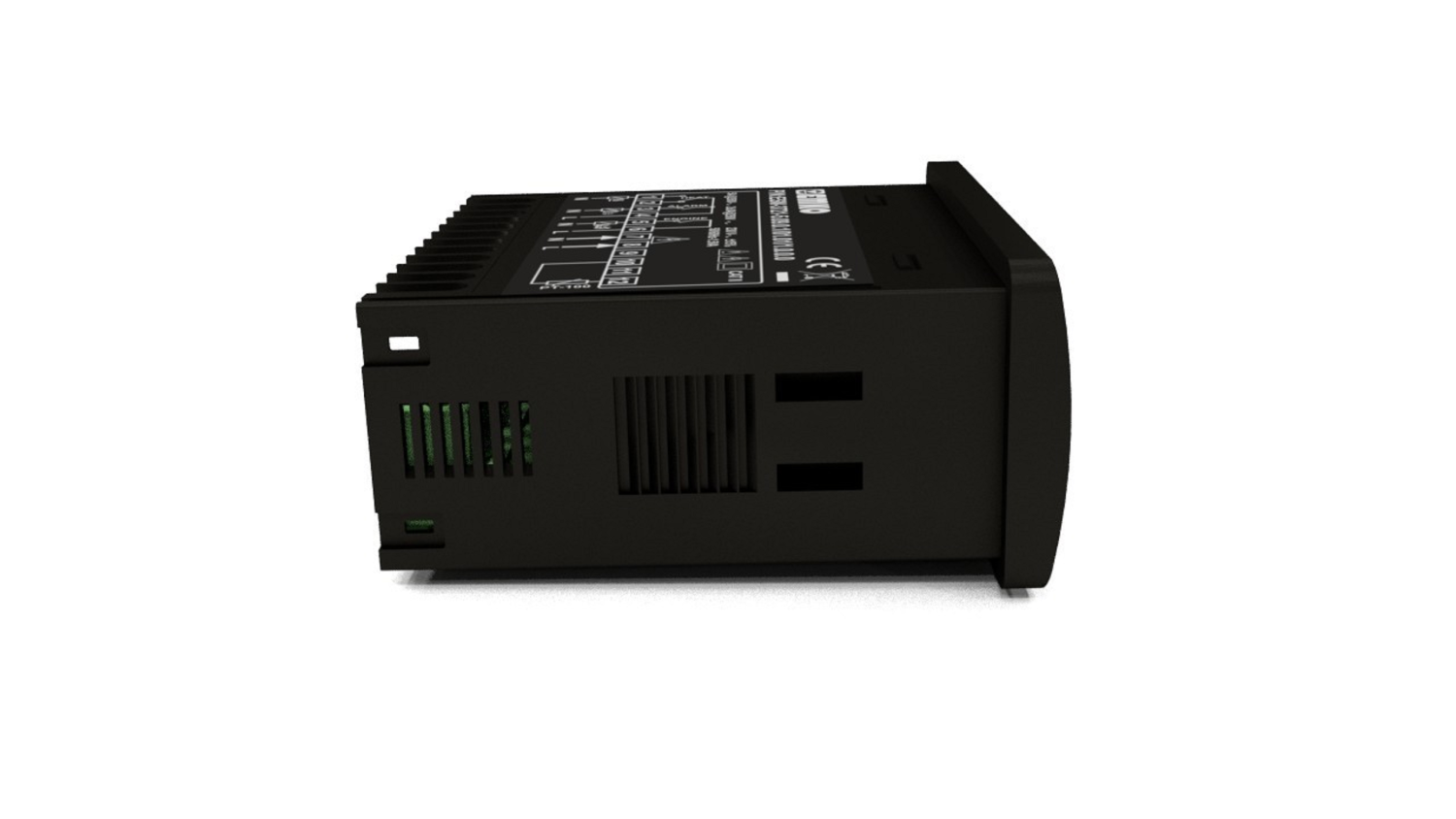

Digital ON/OFF and PID Incubator / Hatcher Controller - ESM-3721.1.09.0.1/01.01/1.0.0.0

Temperature ON/OFF and PID Control Selectable /Heating Control Output, Egg Tray Turning Output, Alarm Control Output / Egg Tray manual operation from front panel / Auto-Tune PID / 4 Digits Display / PTC input / Set Value Boundaries / Alarm parameters and alarm status can be adjusted according to the audible alert (internal buzzer functions for alarm conditions) / Password Protection for Programming Section.

Supply Voltage: 100...240Vac 50/60Hz

Input Type: Pt-100, 0.0...100,0°C

Output-1: Relay Output (Max. 5A@250Vac. for resistive load)

Humidity Control Output: Relay Output (Max. 3A@250Vac. for resistive load)

Egg Tray Rotator Control Output: Relay Output (Max. 3A@250Vac. for resistive load)

Ordered temperature probe is supplied together with the controller in the box: None
